Tool Series ›››

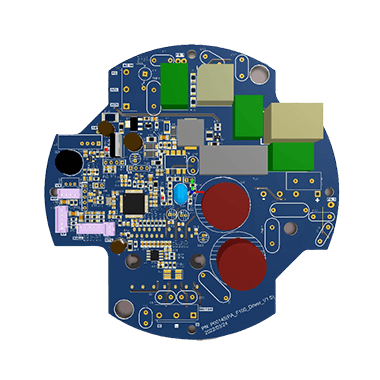

PA-F100
Designed specifically for low horsepower, it is installed at the rear of the motor. Simple and elegant, it makes installation easier. It uses sine wave control (SPWM) to make the motor run with low noise and start smoothly. The power module uses IPM, which greatly improves the overall efficiency of the drive.
PA-F200
The low-voltage 24V fan motor driver is designed to optimize power density and features sensorless motor feedback to achieve high-performance home appliance fans.
PA-F100 Specification
| Product name | PA-F100 |
| Voltage | AC110/ AC220V |
| Output Power | 200W |
| cooling method | Natural air cooling |
| Motor type | 永磁無刷同步馬達 |
| control method | 弦波控制(SPWM) |
| Applicable fields | 吊扇(100吋) |
PA-F200 Specification
| Product name | PA-F200 |
| Voltage | AC85~265V |
| Output Power | 50W |
| cooling method | Natural air cooling |
| Motor type | 永磁無刷同步馬達 |
| control method | 弦波控制(SPWM)、Sensorless FOC |
| Applicable fields | 吊扇 |
